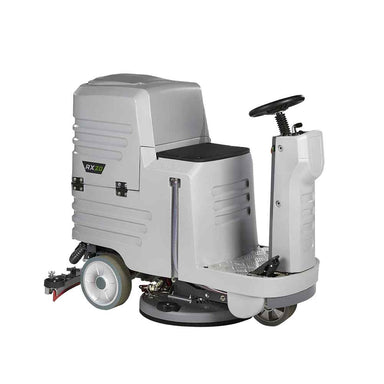

ONYX RX20 20" Ride-On Battery Floor Scrubber

The ONYX RX20 is a 20-inch ride-on battery floor scrubber engineered for high-productivity cleaning in demanding commercial and industrial environments. Built with a rugged cast aluminum cleaning head, a high-capacity tank system, and an 800W rear-wheel drive motor, the RX20 delivers powerful scrubbing performance and productivity of up to 35,000 square feet per hour.

Powered by a 24V 125Ah AGM maintenance-free battery system, the RX20 provides 3–4 hours of runtime while combining a 500W brush motor, 500W vacuum motor, and 800W drive motor for strong cleaning performance and efficient water recovery. The compact ride-on design increases operator productivity while reducing fatigue during extended cleaning applications.

Designed for hotels, restaurants, hospitals, schools, shopping centers, transit hubs, warehouses, industrial facilities, and other large commercial environments, the RX20 combines simple controls, variable drive speed, quick-change brushes and pad drivers, and durable construction to deliver reliable day-after-day performance.

Key Features

Compact Ride-On Floor Scrubber — Ride-on operation improves productivity while maintaining excellent maneuverability in commercial and industrial facilities.
High Productivity Cleaning — Cleans up to 35,000 square feet per hour for demanding commercial and industrial environments.
Powerful Drive System — 800W rear-wheel drive system provides speed, strength, and maneuverability.
Strong Scrubbing Performance — 500W brush motor and 100 lbs. head pressure support deep cleaning performance.
Efficient Water Recovery — 500W vacuum motor and 32” squeegee support streak-free drying.
Maintenance-Free AGM Batteries — 24V AGM battery system provides 3–4 hours of runtime.
Large-Capacity Tanks — 17-gallon solution tank and 20-gallon recovery tank help extend cleaning runs.
Operator-Friendly Controls — Easy-to-use controls, simple drive and brake pedals, and variable speed control support confident operation.
Quick-Change Brush & Pad Driver — Swap brushes and pads quickly to adapt to different floor types and cleaning needs.
Heavy-Duty Construction — Powder coated reinforced steel frame, LDPE body, and industrial-grade bearings.

Ideal Applications

Hotels and restaurants
Hospitals and healthcare facilities
Schools and campuses
Shopping malls and retail spaces
Transit hubs
Industrial complexes
Commercial buildings and large facilities

Standard Equipment

ONYX RX20 Ride-On 20" Autoscrubber
AGM maintenance free batteries
Pad driver
Brush

Specifications

Specification	Details
Product Function	Floor Cleaning
Operation Mode	Ride-On Traction Drive
Dimensions	24x49x43 WxLxH inches
Weight	485 lbs
Shipping Weight	505 lbs
Power	24 Volt AGM Battery System
Battery Capacity	24 volt, 2 x 12 volt 125 Ah AGM Maintenance Free Batteries
Run Time	3-4 Hours
Brush Head Motor	500 Watt
Vacuum Motor	500 Watt
Traction Drive Motor	500 Watt
Drive System	800 Watt, RWD
Pad / Brush Size	20 inch
Working Width	20 inch
Pad / Brush Rotational Speed	180 RPM
Squeegee Width	32 inches
Head Pressure	100 lbs
Productivity Rate	35,000 SqFt per hour
Solution Tank Capacity	17 Gallon
Recovery Tank Capacity	20 Gallon
Sound Level	Less than 63 dBA
Warranty	3 years on machine, 90 days on wearable parts

Product Documents

Data Sheet

Operator's Manual

Illustrated Parts List

Wiring Diagram
