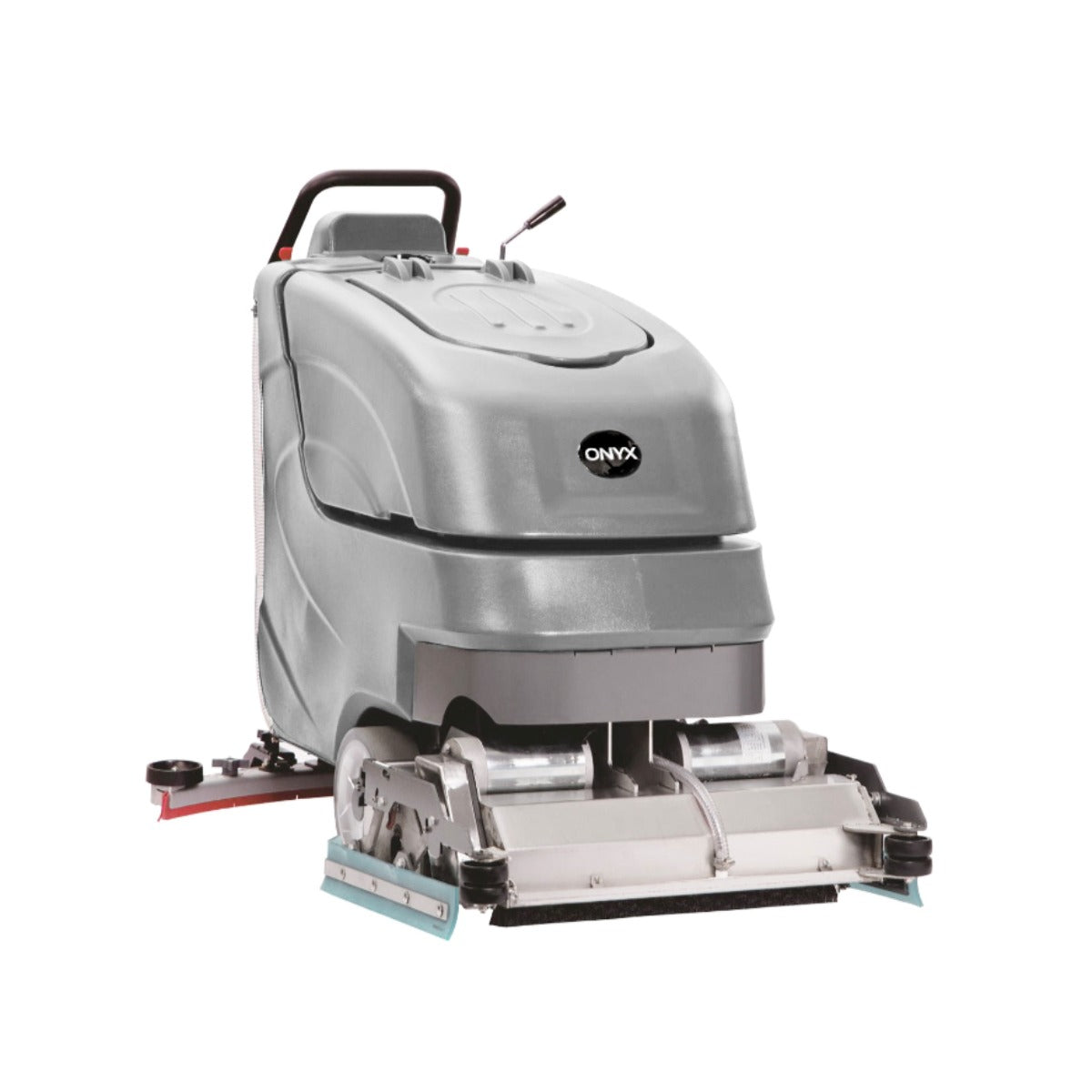

ONYX DX26C Cylindrical Battery Floor Scrubber
The DX26C is a powerful, traction driven walk-behind cylindrical brush scrubber designed for deep cleaning performance in high-demand environments. Featuring dual 26” cylindrical brushes aligned in parallel and supported by an integrated dust collection hopper, the DX26C delivers exceptional cleaning results with productivity rates of up to 35,000 square feet per hour.
Built on the same durable frame as the trusted DX26T rotary model, the DX26C is powered by a robust 24V 270Ah AGM battery pack, offering up to 5 hours of continuous runtime. Its cylindrical brush system allows for debris pickup and scrubbing in a single pass—ideal for facilities requiring thorough cleaning across a variety of surfaces including VCT, LVT, LVP, tile, and composite flooring.
The machine supports a wide selection of brush types and stiffness levels, making it adaptable to a range of commercial and industrial floorcare needs. With its simple controls, ergonomic design, and advanced dust collection, the DX26C is a smart solution for maximizing cleanliness, productivity, and operator ease in any deep-cleaning application.
Key Features
-
Dual Cylindrical Brush System — Dual 26” cylindrical brushes help scrub and collect light debris in a single pass.
-
Integrated Dust Collection Hopper — Captures dust and light debris during operation to help reduce the need for pre-sweeping.
-
High Productivity Cleaning — Cleans up to 35,000 square feet per hour for demanding commercial and industrial environments.
-
Long AGM Battery Runtime — 24V 270Ah AGM battery system provides 4–5 hours of cleaning on a single charge.
-
Efficient Squeegee System — 42” squeegee supports strong water recovery and streak-free drying.
-
High-Capacity Tanks — 17-gallon solution capacity and 23-gallon recovery capacity support longer cleaning runs.
-
Walk-Behind Traction Drive — Designed for easier operation and improved productivity in larger facilities.
-
Standard Brush Set Included — Sold standard with one set of brushes.
Ideal Applications
- Schools and universities
- Hospitals and healthcare facilities
- Shopping malls and retail spaces
- Factories and warehouses
- Commercial buildings and office facilities
- VCT, LVT, LVP, tile, and composite flooring
What's Included
- ONYX DX26C Cylindrical 26" Battery Autoscrubber
- One set of brushes
Specifications
| Specification |
Details |
| Product Function |
Floor Cleaning |
| Operation Mode |
Walk-Behind Traction Drive |
| Dimensions |
28x53x45 WxLxH inches |
| Weight |
460 lbs |
| Shipping Weight |
480 lbs |
| Power |
24 Volt AGM Battery System |
| Battery Capacity |

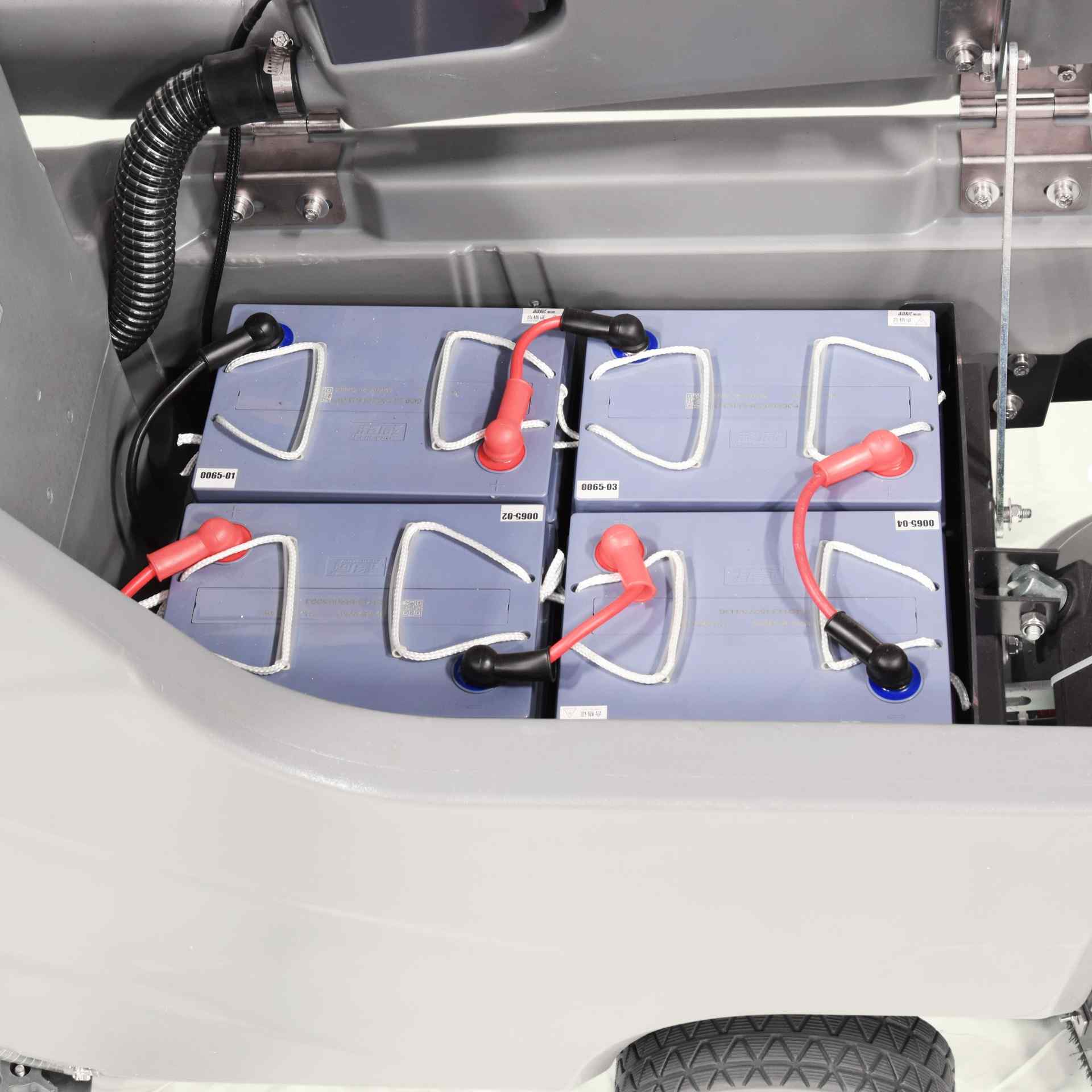

24 volt, 4 x 6 volt 270 Ah AGM Maintenance Free Batteries |
| Run Time |
4-5 Hours |
| Brush Head Motor |
500 Watt x 2 |
| Vacuum Motor |
500 Watt |
| Traction Drive Motor |
500 Watt |
| Pad / Brush Size |
2 x 26 inch |
| Working Width |
26 inches |
| Brush Speed |
350 RPM |
| Squeegee Width |
42 inches |
| Head Pressure |
100 lbs |
| Productivity Rate |
35,000 SqFt per hour |
| Solution Tank Capacity |
17 Gallon |
| Recovery Tank Capacity |
23 Gallon |
| Sound Level |
Less than 63 dBA |
| Warranty |
3 years on machine, 90 days on wearable parts
|
Product Documents
Data Sheet
Operator Manual
Illustrated Parts List
Wiring Diagram
